2001-1441 | WAGO
Double through terminal, spring-clamp connection, 0.25-2.5 mm², 2 pole, 18 A, 8 kV, gray, 2001-1441
Unit Price (€ / pc.)
1.9873 € *
Available: 79 pcs.
Leadtime: On Request **
Total Price:
1.99 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9873 €
10 pcs.
1.8207 €
50 pcs.
1.6660 €
100 pcs.
1.4994 €
*incl. VAT plus shipping costs
**Subject to prior sale

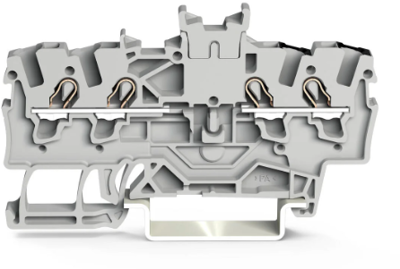

Through terminal block, 2001-1441, Wago
Double feed-through terminal block with double, central labeling receptacle gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | double through terminal | |
| AWG cross-section | AWG 22 to 14 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 4.2 mm | |
| Colour | gray | |
| Height | 69.9 mm | |
| Length | 32.9 mm | |
| Cable cross-section | 0.25-2.5 mm² | |
| Rated current | 18 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
