2002-1204 | WAGO

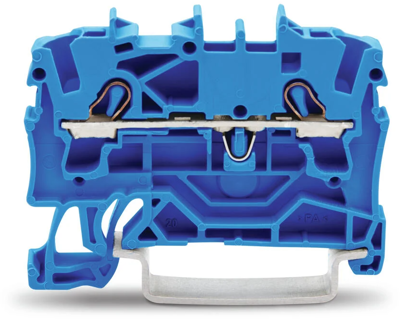

2-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 8 kV, blue, 2002-1204
Unit Price (€ / pc.)
1.0948 € *
Available: 69 pcs.
Available in 5 Days: 276,076 pcs.
Leadtime: 1 Week **
Total Price:
1.09 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0948 €
10 pcs.
0.9996 €
50 pcs.
0.9163 €
100 pcs.
0.8211 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature through terminal block series TOPJOB S for mounting rails TS 35, type Wago 2002-1204
Horizontal design, wire entrance from the front, particularly space-saving cage-clamp-S terminals.
Version: 2-conductor through terminal blocks, rated cross-section 2.5 mm²
Cross-sectional range type 2002: 0.25 to 2.5 mm²
Rated voltage to EN (degree of soiling): 800 V (3)
Rated current type 2002: 24 A
Dimensions type 2002: Length 48.5 mm, Width 5.2 mm, Height 33 mm (H measured from the top edge of the mounting rail)
Certifications: UL, CSA, KEMA etc. The blue terminals are approved for EEx-I applications.
Color: blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 5.2 mm | |
| Colour | blue | |
| Height | 48.5 mm | |
| Length | 32.9 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
