2002-1405 | WAGO

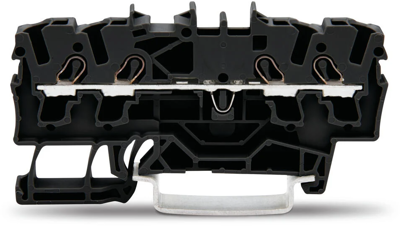

4-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 8 kV, black, 2002-1405
Unit Price (€ / pc.)
1.8802 € *
Available: 64 pcs.
Available in 5 Days: 21,040 pcs.
Leadtime: 3 Weeks **
Total Price:
1.88 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8802 €
10 pcs.
1.7374 €
50 pcs.
1.5827 €
100 pcs.
1.4161 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 2002-1405, WAGO
4-conductor through terminal block, 2.5 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², black.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | 4-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | schwarz | |
| Höhe | 69.9 mm | |
| Länge | 32.9 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
