2002-1602 | WAGO
2-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, orange, 2002-1602
Unit Price (€ / pc.)
3.9032 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
3.90 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9032 €
10 pcs.
3.5938 €
50 pcs.
3.2725 €
100 pcs.
2.9393 €
*incl. VAT plus shipping costs
**Subject to prior sale

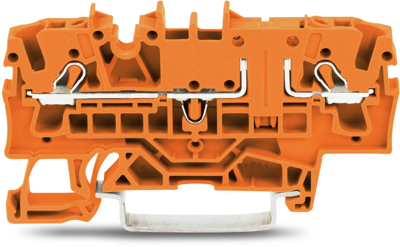

Through terminal block, 2002-1602, WAGO
2-conductor through terminal block, 2.5 mm², with test option, same profile as 2-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², orange.
Technical specifications
| Version | 2-Leiter-Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 1-polig | |
| Cable cross-section | 0,25-4,0 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 16 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |
| Length | 32.9 mm | |
| Width | 5.2 mm | |
| Height | 66.1 mm | |
| Connection | Federklemmanschluss | |
| Colour | orange |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
