2002-1661/099-000 | WAGO
2-wire base terminal, push-in connection, 0.25-4.0 mm², 16 A, 6 kV, gray, 2002-1661/099-000
Unit Price (€ / pc.)
5.8072 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.81 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8072 €
10 pcs.
5.4026 €
50 pcs.
4.9742 €
100 pcs.
4.5696 €
*incl. VAT plus shipping costs
**Subject to prior sale

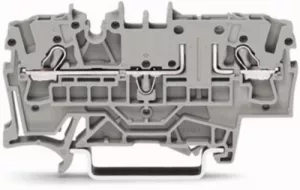

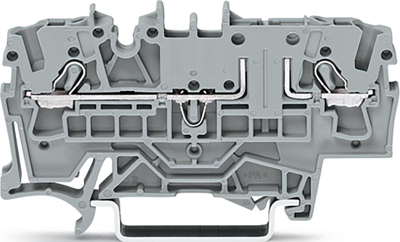

2-conductor carrier terminal block, 2002-1661/099-000, WAGO
2-conductor carrier terminal block for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2.50 mm², gray.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Basisklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 66.1 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 16 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
