2002-1712/1000-867 | WAGO

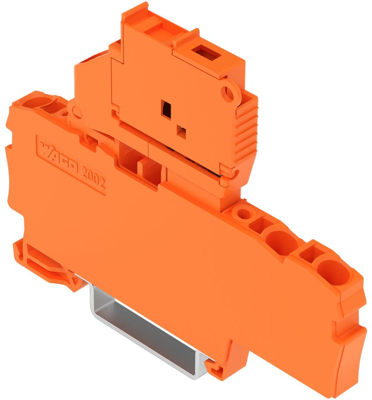

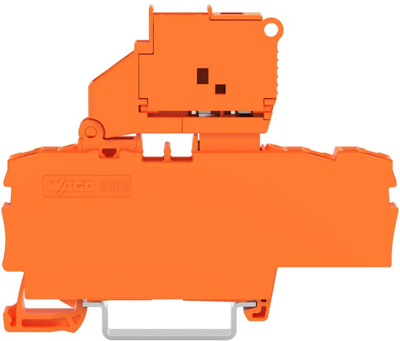

2-conductor fuse terminal block, 2002-1712/1000-867, WAGO

This fuse terminal block (item number 2002-1712/1000-867) is designed for quick and simple connection. The strip length must be between 10 mm and 12 mm when connecting a conductor to this fuse terminal block. Featuring a conductor terminal along with Push-in CAGE CLAMP, this connector outperforms the competition. This Push-in CAGE CLAMP is a universal, maintenance-free connection solution for any conductor type, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This fuse terminal block is suitable for conductor cross sections ranging from 0.25 mm² to 4 mm². It has one level. You can connect a single potential using the three clamping points. The orange housing is made of polyamide (PA66) for insulation. This function terminal block is mounted using a DIN-35 rail.
