2002-1802 | WAGO
4-wire feed-through terminal, spring-clamp connection, 0.25-2.5 mm², 1 pole, 16 A, 6 kV, orange, 2002-1802
Unit Price (€ / pc.)
3.4510 € *
Available: 0 pcs.
Available in 5 Days: 92 pcs.
Leadtime: 10 Weeks **

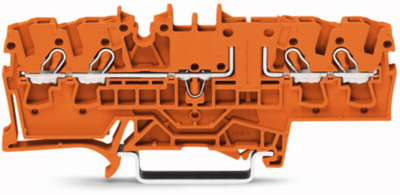

Through terminal block, 2002-1802, WAGO
4-conductor through terminal block, 2.5 mm², with test option, same profile as 4-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², orange.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | 4-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | orange | |
| Höhe | 87.5 mm | |
| Länge | 32.9 mm | |
| Leiterquerschnitt | 0,25-2,5 mm² | |
| Nennstrom | 16 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
