2002-2237 | WAGO
Double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, yellow/green, 2002-2237
Unit Price (€ / pc.)
4.7957 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

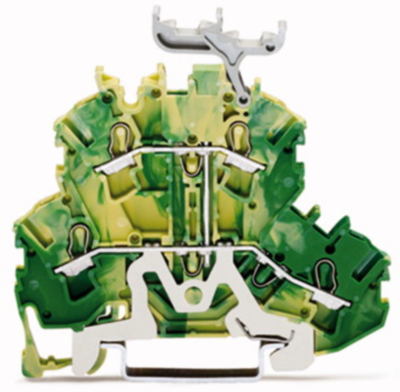

Double-deck terminal block, 2002-2237, WAGO
Double-deck terminal block, 4-conductor ground terminal block, 2.5 mm², PE, suitable for Ex e II applications, with marker carrier, internal commoning, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 7.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 69.9 mm | |
| Länge | 61.8 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
