2002-2239/099-000 | WAGO

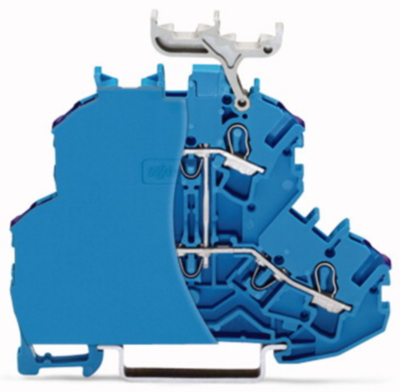

Double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, blue, 2002-2239/099-000
Unit Price (€ / pc.)
4.4506 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.45 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4506 €
10 pcs.
4.0936 €
50 pcs.
3.7247 €
100 pcs.
3.3558 €
*incl. VAT plus shipping costs
**Subject to prior sale
Double-deck terminal block, 2002-2239/099-000, WAGO
Double-deck terminal block, 4-conductor through terminal block, with end plate, N, with marker carrier, suitable for Ex i applications, internal commoning, conductor entry with violet marking, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | blau | |
| Höhe | 69.7 mm | |
| Länge | 61.8 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
