2002-2408 | WAGO
4-wire double level terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 8 kV, gray, 2002-2408
Unit Price (€ / pc.)
4.7124 € *
Available: 0 pcs.
Available in 5 Days: 19,948 pcs.
Leadtime: 10 Weeks **
Total Price:
4.71 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7124 €
10 pcs.
4.3316 €
50 pcs.
3.9389 €
100 pcs.
3.5462 €
*incl. VAT plus shipping costs
**Subject to prior sale

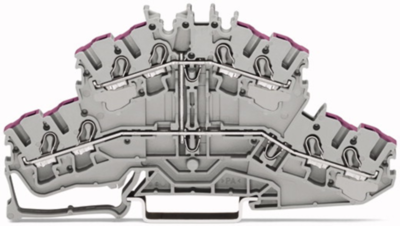

Double deck terminal block, 2002-2408, WAGO
4-conductor double deck terminal block, 8-conductor through terminal block, L, without marker carrier, internal commoning, conductor entry with violet marking, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 8 | |
| Ausführung | 4-Leiter-Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 105.1 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
