2002-2604 | WAGO
Feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, blue, 2002-2604
Unit Price (€ / pc.)
3.7128 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

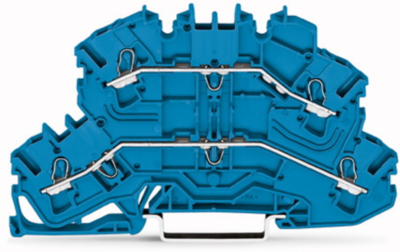

Double-deck terminal block, 2002-2604, WAGO
Double-deck terminal block, Through/through terminal block, same profile as double-deck disconnect terminal block, N/N, without marker carrier, suitable for Ex i applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Connection | Federklemmanschluss | |
| Number of terminals | 4 | |
| Version | Durchgangs-/Durchgangsklemme | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 7.2 mm | |
| Colour | blau | |
| Height | 69.9 mm | |
| Cable cross-section | 0,25-4,0 mm² | |
| Rated current | 24 A | |
| Pin number | 2-polig | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
