2002-2952 | WAGO
Double level double disconnect terminal block, spring-clamp connection, 0.25-4.0 mm², 4 pole, 16 A, 6 kV, gray, 2002-2952
Unit Price (€ / pc.)
9.8889 € *
Available: 0 pcs.
Leadtime: 10 Weeks **

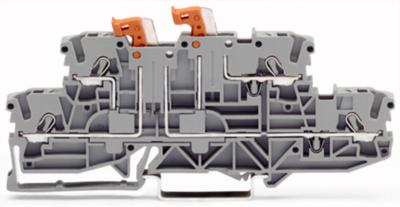

Double-deck, double-disconnect terminal block, 2002-2952, WAGO
Double-deck, double-disconnect terminal block, with 2 pivoting knife disconnects, N/L, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | Doppelstock-Doppeltrennklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 108 mm | |
| Länge | 42 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 16 A | |
| Polzahl | 4-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85365080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
