2002-2959 | WAGO
Double level double disconnect terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 16 A, 6 kV, blue, 2002-2959
Unit Price (€ / pc.)
10.1626 € *
Available: 0 pcs.
Leadtime: 1 Week **

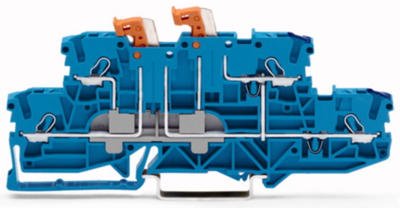

Double-deck, double-disconnect terminal block, 2002-2959, WAGO
Double-deck, double-disconnect terminal block, with 2 pivoting knife disconnects, lower and upper decks internally commoned on right side, conductor entry with violet marking, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | double level double disconnect terminal block | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | blue | |
| Height | 108 mm | |
| Length | 42 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 16 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
