2002-3221/1000-413 | WAGO
Triple-deck component terminal block with red LED, spring-clamp connection, 0.25-4.0 mm², 3 pole, 25 mA, 6 kV, gray, 2002-3221/1000-413
Unit Price (€ / pc.)
7.2709 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

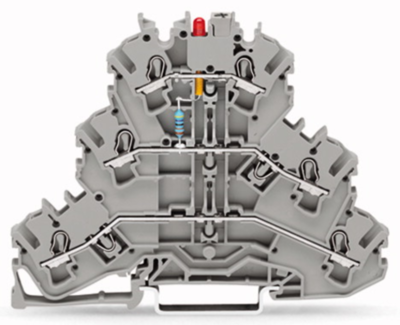

Component terminal block, 2002-3221/1000-413, WAGO
Component terminal block, triple-deck, LED (red), 24 VDC, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Version | Dreistock-Bauelementklemme mit LED rot | |
| Number of terminals | 2 | |
| Pin number | 3-polig | |
| Cable cross-section | 0,25-4,0 mm² | |
| AWG cross-section | AWG 22 bis 12 | |
| Rated surge voltage | 6 kV | |
| Rated current | 25 mA | |
| Rated Voltage | 24 V | |
| Degree of soiling | 3 | |
| Length | 69.5 mm | |
| Width | 5.2 mm | |
| Height | 93.3 mm | |
| Connection | Federklemmanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
