2002-4131 | WAGO

Four-level terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 20 A, 8 kV, gray, 2002-4131

Order No.: 09H4498
EAN: 4050821579427
MPN:
2002-4131
Series: 2002
WAGO
2002-4131 WAGO Series Terminals

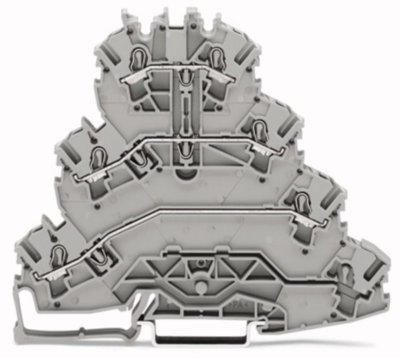

Image may differ
Unit Price (€ / pc.)
5.4740 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
5.47 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4740 €
10 pcs.
5.0456 €
50 pcs.
4.5815 €
100 pcs.
4.1293 €
*incl. VAT plus shipping costs
**Subject to prior sale

Quadruple-deck rail-mounted terminal block, 2002-4131, WAGO

Quadruple-deck rail-mounted terminal block, Rail-mounted terminal block for electric motor wiring, L1 - L2 - L3, with marker carrier, suitable for Ex e II applications, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 6
Version four-level terminal block
AWG cross-section AWG 22 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV
Width 5.2 mm
Colour gray
Height 103.5 mm
Length 96.8 mm
Cable cross-section 0.25-4.0 mm²
Rated current 20 A
Pin number 3 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
