2004-1201 | WAGO

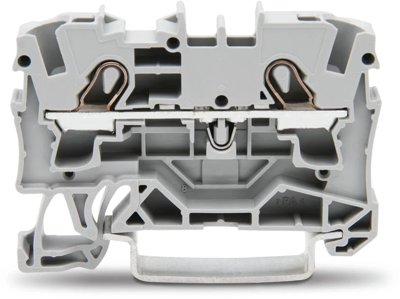

2-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 2 pole, 32 A, 8 kV, gray, 2004-1201
Unit Price (€ / pc.)
1.3447 € *
Available: 1 pcs.
Available in 5 Days: 181,926 pcs.
Leadtime: 3 Weeks **
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3447 €
10 pcs.
1.2376 €
50 pcs.
1.1186 €
100 pcs.
1.0115 €
*incl. VAT plus shipping costs
**Subject to prior sale
Miniature through terminal block series TOPJOB S for mounting rails TS 35, type Wago 2004-1201
Horizontal design, wire entrance from the front, particularly space-saving cage-clamp-S terminals.
Version: 2-conductor through terminal blocks, rated cross-section 4.0 mm²
Cross-sectional range type 2004: 0.5 to 4.0 mm²
Rated voltage to EN (degree of soiling): 800 V (3)
Rated current type 2004: 32 A
Dimensions type 2004: Length 52.5, Width 6.2, Height 33 mm (H measured from the top edge of the mounting rail).
Certifications: UL, CSA, KEMA etc. The blue terminals are approved for EEx-I applications.
Color: gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | grau | |
| Höhe | 52.3 mm | |
| Länge | 32.9 mm | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
