2004-1407 | WAGO
4-wire protective earth terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 22 A, 8 kV, yellow/green, 2004-1407
Unit Price (€ / pc.)
4.9147 € *
Available: 2,716 pcs.
Available in 5 Days: 43,843 pcs.
Leadtime: 3 Weeks **
Total Price:
4.91 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9147 €
10 pcs.
4.4268 €
50 pcs.
4.1650 €
100 pcs.
3.8913 €
*incl. VAT plus shipping costs
**Subject to prior sale

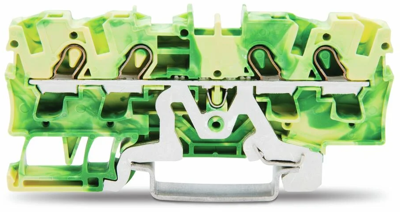

Ground terminal block, 2004-1407, WAGO
4-conductor ground terminal block, 4 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 4,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | 4-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 10 | |
| Bemessungsspannung | 600 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | gelb/grün | |
| Höhe | 78.7 mm | |
| Länge | 32.9 mm | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennstrom | 22 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
