2006-1301/000-001 | WAGO

3-wire feed-through terminal, spring-clamp connection, 0.5-10 mm², 1 pole, 41 A, 8 kV, green, 2006-1301/000-001

Order No.: 44P9101
EAN: 4066966097405
MPN:
2006-1301/000-001
Series: TOPJOB S

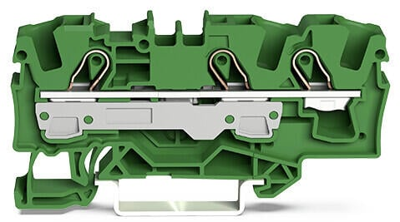

2006-1301/000-001 WAGO Series Terminals Image 1

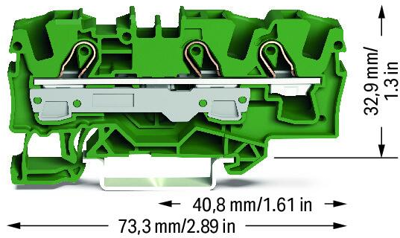

2006-1301/000-001 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
3.0345 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
3.03 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.0345 €

Terminal block, 2006-1301/000-001, WAGO

3-conductor through terminal block, 6 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 6,00 mm², green.

Technical specifications
Version 3-Leiter-Durchgangsklemme
Number of terminals 3
Pin number 1-polig
Cable cross-section 0,5-10 mm²
AWG cross-section AWG 20 bis 8
Rated surge voltage 8 kV
Rated current 41 A
Rated Voltage 800 V
Degree of soiling 3
Length 39.5 mm
Width 7.5 mm
Height 73.3 mm
Connection Federklemmanschluss
Colour grün
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
