2010-1201 | WAGO

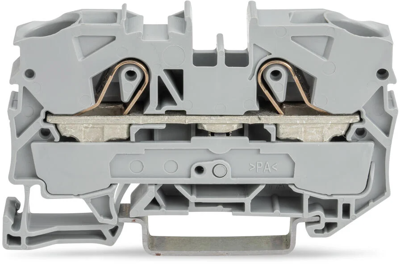

2-wire feed-through terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 57 A, 8 kV, gray, 2010-1201
Unit Price (€ / pc.)
2.7013 € *
Available: 19 pcs.
Available in 5 Days: 102,834 pcs.
Leadtime: 1 Week **
Total Price:
2.70 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7013 €
10 pcs.
2.4871 €
50 pcs.
2.2610 €
100 pcs.
2.0349 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 2010-1201, Wago
2-conductor through terminal block suitable for Ex e II applications gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 10 mm | |
| Colour | gray | |
| Height | 67.8 mm | |
| Length | 36.9 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 57 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
