2010-1305 | WAGO
3-wire feed-through terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 57 A, 8 kV, black, 2010-1305
Unit Price (€ / pc.)
4.7243 € *
Available: 0 pcs.
Available in 5 Days: 1,498 pcs.
Leadtime: 3 Weeks **
Total Price:
4.72 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7243 €
10 pcs.
4.3435 €
50 pcs.
3.9508 €
100 pcs.
3.5581 €
*incl. VAT plus shipping costs
**Subject to prior sale

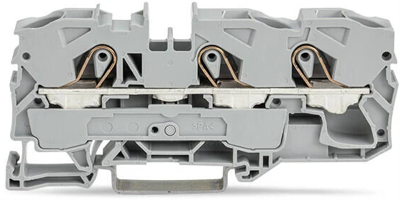

Through terminal block, 2010-1305, WAGO
3-conductor through terminal block, 10 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 10,00 mm², black.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | 3-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 10 mm | |
| Farbe | schwarz | |
| Höhe | 89 mm | |
| Länge | 36.9 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Nennstrom | 57 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
