2016-1202 | WAGO
2-wire feed-through terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 76 A, 8 kV, orange, 2016-1202
Unit Price (€ / pc.)
3.3915 € *
Available: 0 pcs.
Available in 5 Days: 3,583 pcs.
Leadtime: 3 Weeks **
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1297 €
50 pcs.
2.8441 €
100 pcs.
2.5585 €
*incl. VAT plus shipping costs
**Subject to prior sale

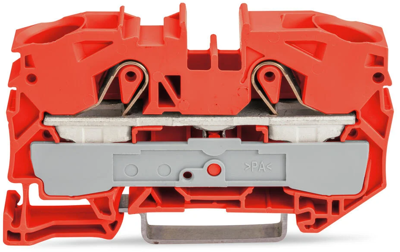

Through terminal block, 2016-1202, Wago
2-conductor through terminal block suitable for Ex e II applications orange
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12 mm | |
| Farbe | orange | |
| Höhe | 69.8 mm | |
| Länge | 36.9 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Nennstrom | 76 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
