2016-1208 | WAGO
2-wire shield wire terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 76 A, 8 kV, white, 2016-1208
Unit Price (€ / pc.)
7.3066 € *
Available: 10 pcs.
Available in 5 Days: 155 pcs.
Leadtime: 1 Week **
Total Price:
7.31 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3066 €
10 pcs.
6.7235 €
50 pcs.
6.1166 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
**Subject to prior sale

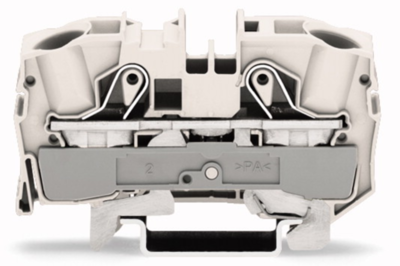

2-Conductor shield terminal block, 2016-1208, Wago
2-conductor shielded conductor terminal block for applications Ex e II suitable white
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire shield wire terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 12 mm | |
| Colour | white | |
| Height | 69.8 mm | |
| Length | 36.9 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 76 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
