2016-1307 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 67 A, 8 kV, yellow/green, 2016-1307
Unit Price (€ / pc.)
8.5680 € *
Available: 0 pcs.
Available in 5 Days: 23,032 pcs.
Leadtime: 3 Weeks **
Total Price:
8.57 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5680 €
10 pcs.
7.8778 €
50 pcs.
7.1757 €
100 pcs.
6.4617 €
*incl. VAT plus shipping costs
**Subject to prior sale

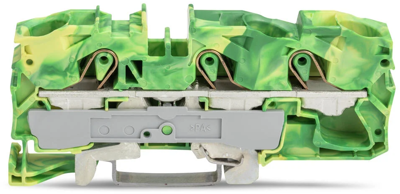

Ground terminal block, 2016-1307, WAGO
3-conductor ground terminal block, 16 mm², suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 16,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | 3-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Bemessungsspannung | 550 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 12 mm | |
| Farbe | gelb/grün | |
| Höhe | 91.8 mm | |
| Länge | 36.9 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Nennstrom | 67 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
