2016-7111 | WAGO

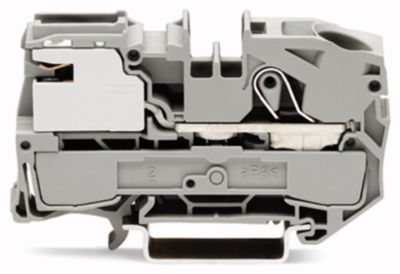

1-wire potential equalization terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 65 A, 4 kV, gray, 2016-7111
Unit Price (€ / pc.)
5.4859 € *
Available: 0 pcs.
Available in 5 Days: 266 pcs.
Leadtime: 1 Week **
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4859 €
10 pcs.
5.0456 €
50 pcs.
4.5934 €
100 pcs.
4.1293 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor power distribution disconnect terminal block, 2016-7111, Wago
1-conductor equipotential bonding terminal; 16 mm²; push-in CAGE CLAMP®; 16.00 mm²; gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 1 | |
| Version | 1-wire potential equalization terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 12 mm | |
| Colour | gray | |
| Height | 69 mm | |
| Length | 31.8 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 65 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
