2016-7114 | WAGO

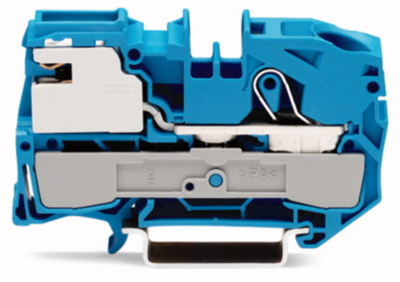

1-wire N disconnect terminal, spring-clamp connection, 0.5-16 mm², 1 pole, 65 A, 4 kV, blue, 2016-7114
Unit Price (€ / pc.)
5.6763 € *
Available: 0 pcs.
Available in 5 Days: 2,561 pcs.
Leadtime: 1 Week **
Total Price:
5.68 € *
Price list
Quantity
Price per unit*
1 pcs.
5.6763 €
10 pcs.
5.2241 €
50 pcs.
4.7481 €
100 pcs.
4.2721 €
*incl. VAT plus shipping costs
**Subject to prior sale
1-Conductor N-disconnect terminal, 2016-7114, Wago
1-wire N-disconnect terminal N-supply terminal blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 1 | |
| Version | 1-wire N disconnect terminal | |
| AWG cross-section | AWG 20 to 6 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |
| Width | 12 mm | |
| Colour | blue | |
| Height | 69 mm | |
| Length | 31.8 mm | |
| Cable cross-section | 0.5-16 mm² | |
| Rated current | 65 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
