2020-1207 | WAGO
1-wire/1-pin PE basic terminal, spring-clamp connection, 0.14-1.5 mm², 1 pole, 13.5 A, 6 kV, yellow/green, 2020-1207
Unit Price (€ / pc.)
2.1063 € *
Available: 44 pcs.
Available in 5 Days: 4,076 pcs.
Leadtime: 1 Week **
Total Price:
2.11 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1063 €
10 pcs.
1.9397 €
50 pcs.
1.7612 €
100 pcs.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale

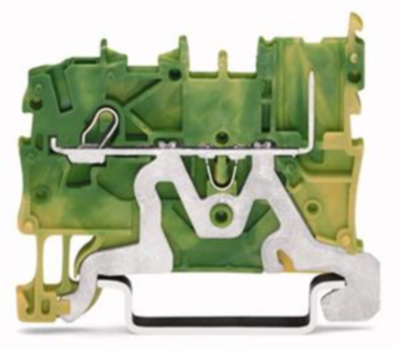

Ground carrier terminal block, 2020-1207, WAGO
1-conductor/1-pin ground carrier terminal block, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,00 mm², green-yellow.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 1 | |
| Version | 1-wire/1-pin PE basic terminal | |
| AWG cross-section | AWG 24 to 16 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 3.5 mm | |
| Colour | yellow/green | |
| Height | 50.8 mm | |
| Length | 32.5 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 13.5 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
