2020-2201 | WAGO
1-wire/1-pin double stick basic clamp, push-in connection, 0.14-1.5 mm², 13.5 A, 6 kV, gray, 2020-2201
Unit Price (€ / pc.)
2.0230 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
2.02 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0230 €
10 pcs.
1.8802 €
50 pcs.
1.7255 €
100 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

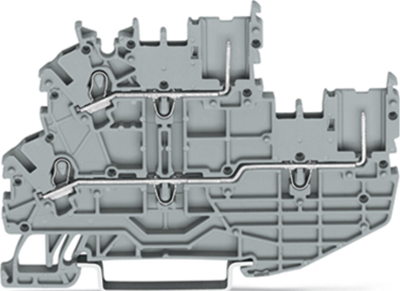

1-conductor/1-pin double deck receptacle terminal block, 2020-2201, WAGO
1-conductor/1-pin double deck receptacle terminal block, Through/through terminal block, L/L, without marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1.00 mm², gray.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 1-Leiter/1-Pin-Doppelstock-Basisklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 16 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |

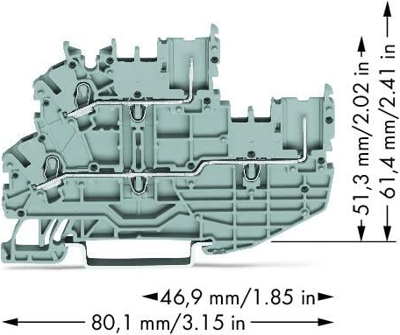

| Breite | 3.5 mm | |
| Farbe | grau | |
| Höhe | 80.1 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennstrom | 13.5 A | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CN |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
