2020-2204 | WAGO

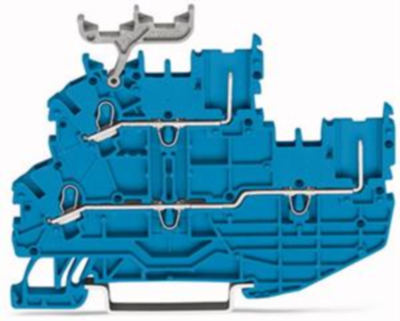

1-wire/1-pin double level terminal, spring-clamp connection, 0.14-1.5 mm², 2 pole, 13.5 A, 6 kV, blue, 2020-2204
Unit Price (€ / pc.)
2.3443 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
2.34 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3443 €
10 pcs.
2.1539 €
50 pcs.
1.9635 €
100 pcs.
1.7612 €
*incl. VAT plus shipping costs
**Subject to prior sale
Double deck receptacle terminal block, 2020-2204, WAGO
1-conductor/1-pin double deck receptacle terminal block, Through/through terminal block, N/N, without marker carrier, suitable for Ex i applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,00 mm², blue.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 1-Leiter/1-Pin-Doppelstockklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 16 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 3.5 mm | |
| Farbe | blau | |
| Höhe | 80.1 mm | |
| Länge | 51.3 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Nennstrom | 13.5 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
