2022-1301/999-953 | WAGO
2-wire/1-pin basic terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 6 kV, gray, 2022-1301/999-953
Unit Price (€ / pc.)
2.1301 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.13 € *
Price list
Quantity
Price per unit*
1 pcs.
2.1301 €
10 pcs.
1.9635 €
50 pcs.
1.7850 €
100 pcs.
1.6065 €
*incl. VAT plus shipping costs
**Subject to prior sale

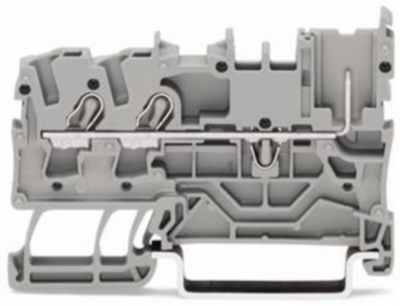

Carrier terminal block, 2022-1301/999-953, WAGO
2-conductor/1-pin carrier terminal block, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 3 | |
| Version | 2-wire/1-pin basic terminal | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 630 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 59.2 mm | |
| Length | 32.5 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
