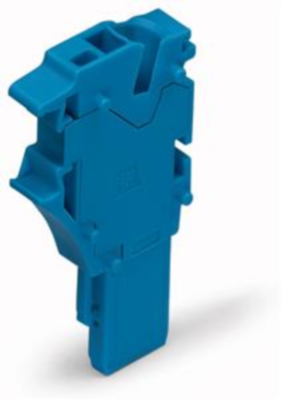

1-wire start module, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 6 kV, blue, 2022-164
Unit Price (€ / pc.)
1.1186 € *
Available: 0 pcs.
Leadtime: On Request **
Start module, 2022-164, WAGO
Start module for 1-conductor female connector, Push-in CAGE CLAMP, 4 mm², Pin spacing 5.2 mm, 1-pole, with integrated end plate, 4,00 mm², blue.
Technical specifications
| Connection | spring-clamp connection | |
| Version | 1-wire start module | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 690 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | blue | |
| Height | 40.5 mm | |
| Length | 22.4 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
