2022-2207 | WAGO

2-wire/2-pin double level terminal, spring-clamp connection, 0.75-4.0 mm², 2 pole, 20 A, 6 kV, yellow/green, 2022-2207

Order No.: 43P3578
EAN: 4055143265799
MPN:
2022-2207
Series: X-COM S
2022-2207 WAGO Series Terminals

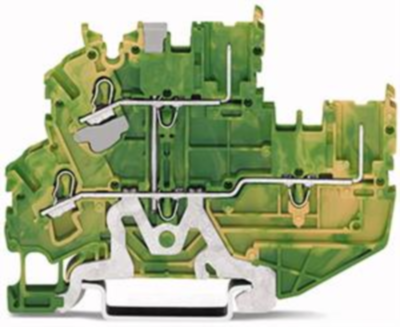

Image may differ
Unit Price (€ / pc.)
4.2364 € *
Available: 0 pcs.
Leadtime: 10 Weeks **
Total Price:
4.24 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2364 €

Double-deck carrier terminal block, 2022-2207, WAGO

2-conductor/2-pin, double-deck carrier terminal block, 2-conductor/2-pin ground terminal block, 2.5 mm², PE, internal commoning, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Version 2-Leiter/2-Pin-Doppelstockklemme
Number of terminals 2
Pin number 2-polig
Cable cross-section 0,75-4,0 mm²
AWG cross-section AWG 18 bis 12
Rated surge voltage 6 kV
Rated current 20 A
Rated Voltage 600 V
Degree of soiling 3
Length 51.3 mm
Width 5.2 mm
Height 80.1 mm
Connection Federklemmanschluss
Colour gelb/grün
Logistics
Country of origin CN
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
