2022-2208 | WAGO

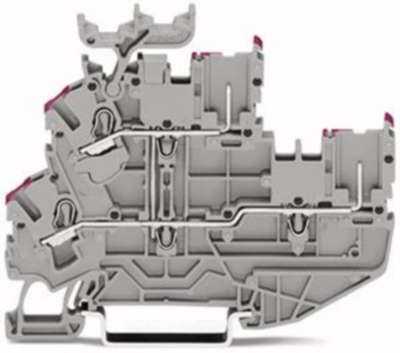

2-wire/2-pin double level terminal, spring-clamp connection, 0.75-4.0 mm², 2 pole, 24 A, 6 kV, gray, 2022-2208
Unit Price (€ / pc.)
3.2487 € *
Available: 0 pcs.
Available in 5 Days: 528 pcs.
Leadtime: 1 Week **
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
2.9869 €
50 pcs.
2.7132 €
100 pcs.
2.4514 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor/2-pin-double-deck carrier terminal block, 2022-2208, Wago
2-conductor/2-pin double-level basic terminal block 2-conductor/2-pin feed-through terminal block L without labeling carrier Housing color gray internally bridged Female connector entry violet printed gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire/2-pin double level terminal | |
| AWG cross-section | AWG 18 to 12 | |
| Rated Voltage | 690 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 80.1 mm | |
| Length | 51.3 mm | |
| Cable cross-section | 0.75-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
