2022-2238/999-953 | WAGO

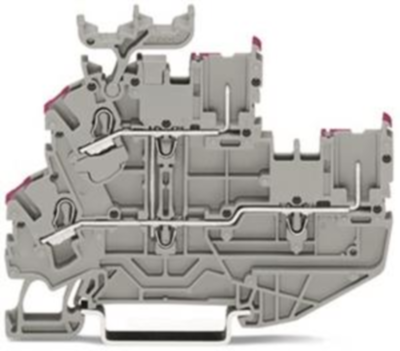

2-wire/2-pin double level terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 20 A, 6 kV, gray, 2022-2238/999-953
Unit Price (€ / pc.)
4.5696 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.57 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5696 €
10 pcs.
4.2126 €
50 pcs.
3.8318 €
100 pcs.
3.4510 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor/2-pin-double-deck carrier terminal block, 2022-2238/999-953, Wago
2-conductor/2-pin, double-deck carrier terminal block; 2-conductor/2-pin through terminal block; 2.5 mm²; L; internal commoning; conductor entry with violet marking; suitable for Ex nA applications; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire/2-pin double level terminal | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 630 V | |
| Rated surge voltage | 6 kV | |
| Width | 5.2 mm | |
| Colour | gray | |
| Height | 80.1 mm | |
| Length | 61.4 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 20 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
