2022-2247/999-953 | WAGO

1-wire/1-pin double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 20 A, 6 kV, gray, 2022-2247/999-953

Order No.: 43P3597
EAN: 4055143299473
MPN:
2022-2247/999-953
Series: 2022
WAGO
2022-2247/999-953 WAGO Series Terminals

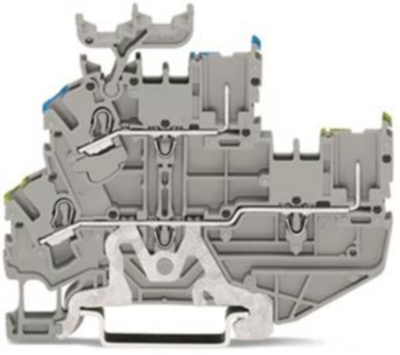

Image may differ
Unit Price (€ / pc.)
4.4387 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.4387 €

1-Conductor/1-pin double deck receptacle terminal block, 2022-2247/999-953, Wago

1-conductor/1-pin double deck receptacle terminal block; Ground conductor/through terminal block; 2.5 mm²; PE/N; suitable for Ex nA applications; with marker carrier; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; gray

Technical specifications
Connection spring-clamp connection
Number of terminals 2
Version 1-wire/1-pin double level terminal
AWG cross-section AWG 22 to 12
Rated Voltage 690 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 80.1 mm
Length 61.4 mm
Cable cross-section 0.25-4.0 mm²
Rated current 20 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
