2022-2257 | WAGO

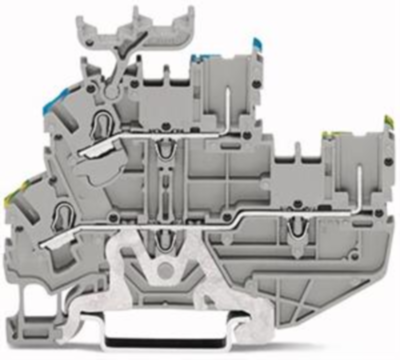

Name: 1-wire/1-pin double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, gray, 2022-2257
Brand: WAGO
SKU: 43P1192
Price: 3.65 EUR
Availability: OutOfStock

1-wire/1-pin double level terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 24 A, 6 kV, gray, 2022-2257

Order No.: 43P1192

EAN: 4045454994792

MPN:

2022-2257

Series: 2022

Image may differ

Key Specification:

Ausführung 1-Leiter/1-Pin-Doppelstockklemme

Anzahl der Klemmstellen 2

Polzahl 2-polig

Leiterquerschnitt 0,25-4,0 mm²

AWG-Leiterquerschnitt AWG 22 bis 12

Show 24 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.6533 € *

Available: 0 pcs.

Available in 5 Days: 87 pcs.

Leadtime: 3 Weeks **

Add to Cart

Total Price:

3.65 € *

*incl. VAT plus shipping costs

**Subject to prior sale
