2050-1206 | WAGO

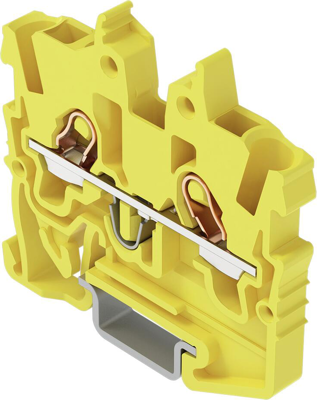

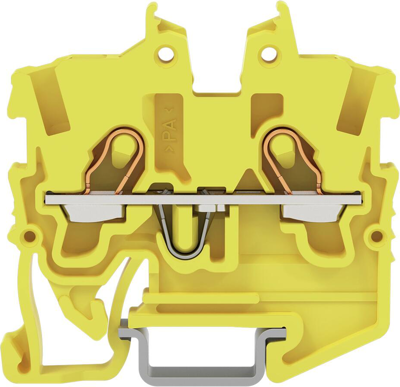

2 wire mini through terminal, push-in connection, 0.14-1.5 mm², 1 pole, 13.5 A, 6 kV, yellow, 2050-1206
Unit Price (€ / pc.)
0.9996 € *
Available: 0 pcs.
Available in 5 Days: 2,812 pcs.
Leadtime: 1 Week **
2-conductor miniature through terminal block, 2050-1206, WAGO
2-conductor miniature through terminal block with operating slots, 1 mm² with test port, side and center marking, for DIN-15 rail, Push-in, yellow.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | 2 wire mini through terminal | |
| AWG cross-section | AWG 24 to 16 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 3.5 mm | |
| Colour | yellow | |
| Height | 34.1 mm | |
| Length | 27.9 mm | |
| Cable cross-section | 0.14-1.5 mm² | |
| Rated current | 13.5 A | |
| Pin number | 1 pole | |
| Degree of soiling | 2 |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
