2050-324 | WAGO
2 wire mini through terminal, push-in connection, 0.14-1.5 mm², 2 pole, 13.5 A, 6 kV, blue, 2050-324
Unit Price (€ / pc.)
1.2138 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

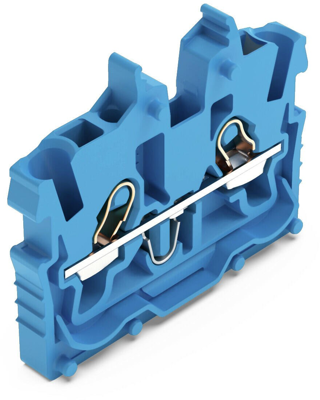

Terminal block, 2050-324, Wago
2-conductor miniature through terminal block, with operating slots, 1 mm², with test port, side and center marking, Center terminal block without snap-in mounting foot, without mounting flange, Push-in CAGE CLAMP®, 1,00 mm², blue.
Technical specifications
| Version | 2-Leiter-Mini-Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 2-polig | |
| Cable cross-section | 0,14-1,5 mm² | |
| AWG cross-section | AWG 24 bis 16 | |
| Rated surge voltage | 6 kV | |
| Rated current | 13.5 A | |
| Rated Voltage | 500 V | |
| Degree of soiling | 3 | |
| Length | 33.2 mm | |
| Width | 3.5 mm | |
| Height | 27.2 mm | |
| Connection | Push-in-Anschluss | |
| Colour | blau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
