2052-321 | WAGO
2 wire mini through terminal, push-in connection, 0.25-4.0 mm², 1 pole, 24 A, 8 kV, gray, 2052-321
Unit Price (€ / pc.)
0.9996 € *
Available: 90 pcs.
Leadtime: 3 Weeks **

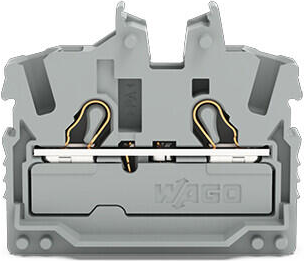

2-conductor miniature through terminal block, 2052-321, WAGO
2-conductor miniature through terminal block with operating slots, 2.5 mm², Center terminal block without snap-in mounting foot, without mounting flange, side and center marking with test port, Push-in, gray.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Mini-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 30 mm | |
| Länge | 35.5 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
