2102-1207 | WAGO

2-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, yellow/green, 2102-1207

Order No.: 44P9437
EAN: 4055143741767
MPN:
2102-1207
Series: TOPJOB S

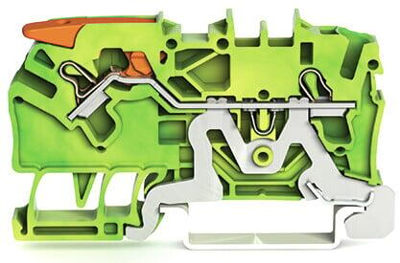

2102-1207 WAGO Series Terminals Image 1

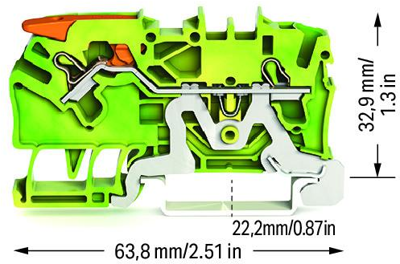

2102-1207 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.90 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.9028 €

2-conductor ground terminal block, 2102-1207, WAGO

2-conductor ground terminal block, with lever and Push-in cage clamp 2.5 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in cage clamp 2.50 mm², green-yellow.

Technical specifications
Anschluss Federklemmanschluss
Anzahl der Klemmstellen 2
Ausführung 2-Leiter-Schutzleiterklemme
AWG-Leiterquerschnitt AWG 22 bis 12
Breite 5.2 mm
Farbe gelb/grün
Höhe 63.8 mm
Leiterquerschnitt 0,25-4,0 mm²
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
