2106-1207 | WAGO
2-wire protective earth terminal, spring-clamp connection, 0.5-10 mm², 1 pole, green-yellow, 2106-1207
Unit Price (€ / pc.)
6.3665 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
6.37 € *
Price list
Quantity
Price per unit*
1 pcs.
6.3665 €
10 pcs.
5.9262 €
50 pcs.
5.4502 €
100 pcs.
4.9623 €
*incl. VAT plus shipping costs
**Subject to prior sale

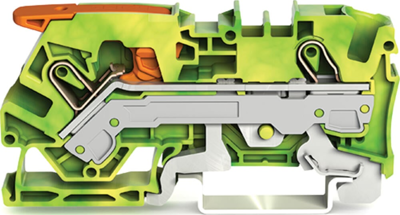

Ground terminal block, 2106-1207, WAGO
2-conductor ground terminal block, with lever and Push-in CAGE CLAMP, 6 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 6,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 8 | |

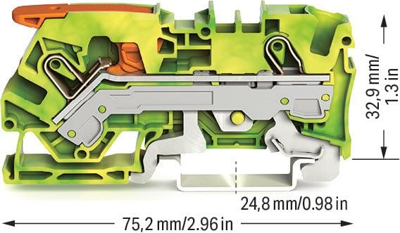

| Breite | 7.5 mm | |
| Farbe | grün-gelb | |
| Höhe | 75.2 mm | |
| Leiterquerschnitt | 0,5-10 mm² | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
