2116-1307 | WAGO
3-wire protective earth terminal, spring-clamp connection, 0.5-16 mm², 1 pole, green-yellow, 2116-1307
Unit Price (€ / pc.)
12.0190 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
12.02 € *
Price list
Quantity
Price per unit*
1 pcs.
12.0190 €
10 pcs.
11.1741 €
50 pcs.
10.2816 €
100 pcs.
9.3534 €
*incl. VAT plus shipping costs
**Subject to prior sale
Ground terminal block, 2116-1307, WAGO

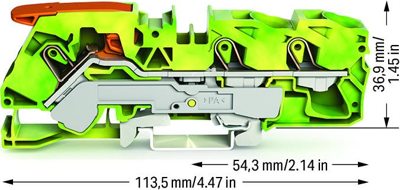

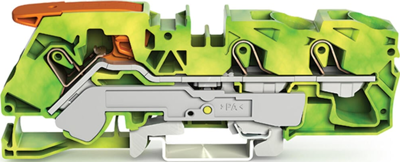

3-conductor ground terminal block, with lever and Push-in CAGE CLAMP, 16 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 16,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | 3-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 6 | |
| Breite | 12 mm | |
| Farbe | grün-gelb | |
| Höhe | 113.5 mm | |
| Leiterquerschnitt | 0,5-16 mm² | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
