2200-1207 | WAGO
2-wire protective earth terminal, spring-clamp connection, 0.14-1.5 mm², 1 pole, green-yellow, 2200-1207
Unit Price (€ / pc.)
3.3439 € *
Available: 0 pcs.
Available in 5 Days: 4,019 pcs.
Leadtime: 3 Weeks **
Total Price:
3.34 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3439 €
10 pcs.
3.1059 €
50 pcs.
2.8560 €
100 pcs.
2.6061 €
*incl. VAT plus shipping costs
**Subject to prior sale

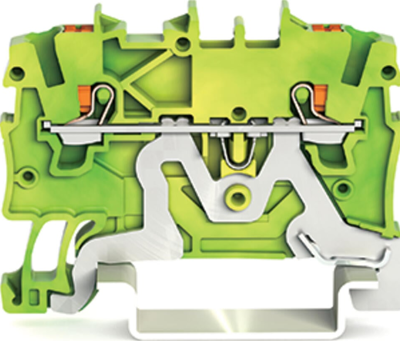

Ground terminal block, 2200-1207, WAGO
2-conductor ground terminal block, with push-button, 1 mm², with test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 1,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 24 bis 16 | |

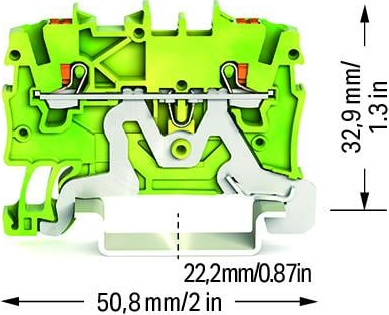

| Breite | 3.5 mm | |
| Farbe | grün-gelb | |
| Höhe | 50.8 mm | |
| Leiterquerschnitt | 0,14-1,5 mm² | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
