2202-1307 | WAGO

3-wire protective earth terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, green-yellow, 2202-1307

Order No.: 44P8743
EAN: 4055143713856
MPN:
2202-1307
Series: 2202
WAGO

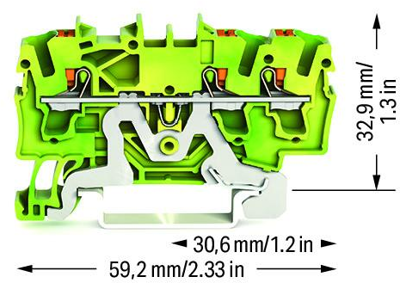

2202-1307 WAGO Series Terminals Image 1

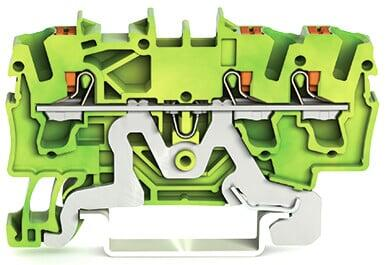

2202-1307 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.2245 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.2245 €

Terminal block, 2202-1307, WAGO

3-conductor ground terminal block, with push-button, 2.5 mm², test port, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green-yellow.

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire protective earth terminal
AWG cross-section AWG 22 to 12
Width 5.2 mm
Colour green-yellow
Height 59.2 mm
Cable cross-section 0.25-4.0 mm²
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
