2202-1401/000-001 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 8 kV, green, 2202-1401/000-001

Order No.: 44P8812
EAN: 4066966097337
MPN:
2202-1401/000-001
Series: 2202
WAGO

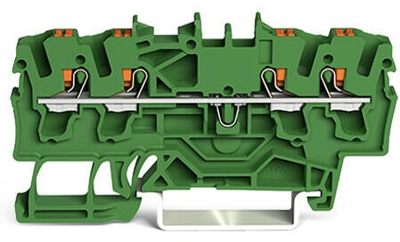

2202-1401/000-001 WAGO Series Terminals Image 1
2202-1401/000-001 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
1.7493 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.75 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
1.7493 €

Terminal block, 2202-1401/000-001, WAGO

4-conductor through terminal block, with push-button, 2.5 mm², test port, suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², green.

Technical specifications
Connection spring-clamp connection
Number of terminals 4
Version 4-wire feed-through terminal
AWG cross-section AWG 22 to 12
Rated Voltage 800 V
Rated surge voltage 8 kV

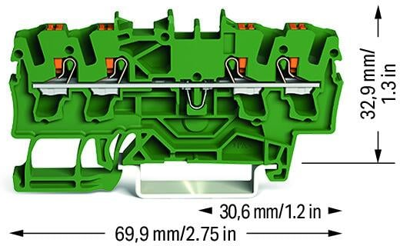

Width 5.2 mm
Colour green
Height 69.9 mm
Length 39.5 mm
Cable cross-section 0.25-4.0 mm²
Rated current 24 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
