3-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, blue, 2202-1704
Unit Price (€ / pc.)
4.1888 € *
Available: 0 pcs.
Available in 5 Days: 90 pcs.
Leadtime: 3 Weeks **

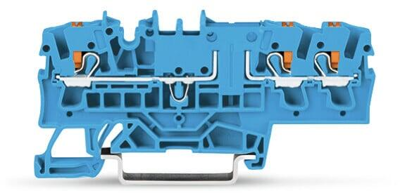

Terminal block, 2202-1704, WAGO
3-conductor through terminal block, with push-button, 2.5 mm², test option, same profile as 3-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | 3-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |

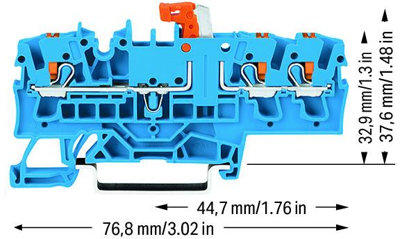

| Breite | 5.2 mm | |
| Farbe | blau | |
| Höhe | 76.8 mm | |
| Länge | 39.5 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 16 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
