2202-1761 | WAGO

3-wire base terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 16 A, 6 kV, gray, 2202-1761

Order No.: 44P8770
EAN: 4055143961134
MPN:
2202-1761
Series: 2202
WAGO

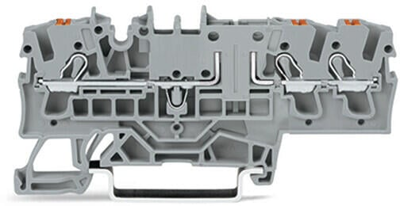

2202-1761 WAGO Series Terminals Image 1

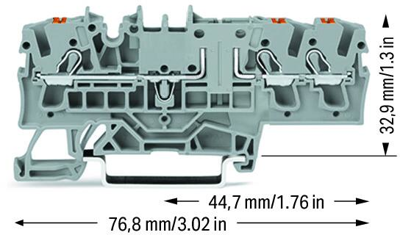

2202-1761 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
3.9151 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.92 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3.9151 €

Terminal block, 2202-1761, WAGO

3-conductor carrier terminal block, with push-button, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire base terminal
AWG cross-section AWG 22 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 76.8 mm
Cable cross-section 0.25-4.0 mm²
Rated current 16 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
