2202-1771 | WAGO

3-wire disconnect and measuring terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, gray, 2202-1771

Order No.: 44P8797
EAN: 4055143961271
MPN:
2202-1771
Series: 2202
WAGO
2202-1771 WAGO Series Terminals Image 1
2202-1771 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.2007 € *
Available: 48 pcs.
Available in 5 Days: 81 pcs.
Leadtime: 1 Week **
Total Price:
4.20 € *
Price list
Quantity
Price per unit*
1 pcs.
4.2007 €
10 pcs.
3.8675 €
50 pcs.
3.5224 €
100 pcs.
3.1654 €
*incl. VAT plus shipping costs
**Subject to prior sale

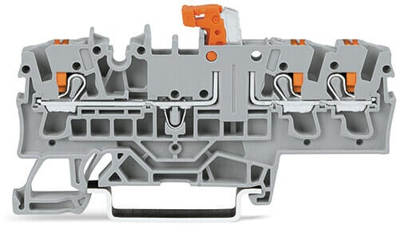

Terminal block, 2202-1771, WAGO

3-conductor disconnect/test terminal block, with push-button, test option, orange disconnect link, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 3
Version 3-wire disconnect and measuring terminal
AWG cross-section AWG 22 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV

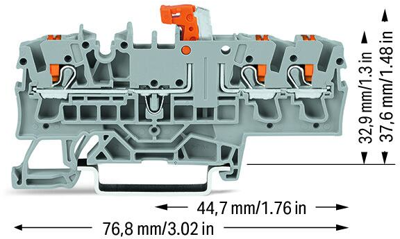

Width 5.2 mm
Colour gray
Height 76.8 mm
Cable cross-section 0.25-4.0 mm²
Rated current 16 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
