2202-1801 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, gray, 2202-1801

Order No.: 44P8807
EAN: 4055143902649
MPN:
2202-1801
Series: 2202
WAGO

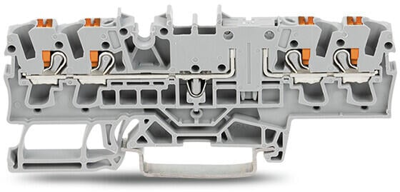

2202-1801 WAGO Series Terminals Image 1

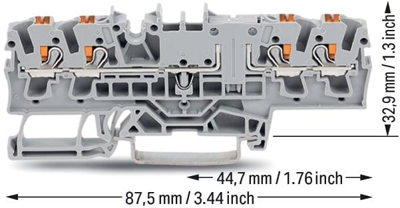

2202-1801 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Available in 5 Days: 277 pcs.
Leadtime: 1 Week **
Total Price:
4.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.6648 €

Terminal block, 2202-1801, WAGO

4-conductor through terminal block, with push-button, 2.5 mm², test option, same profile as 4-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 4
Version 4-wire feed-through terminal
AWG cross-section AWG 22 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 87.5 mm
Length 39.5 mm
Cable cross-section 0.25-4.0 mm²
Rated current 16 A
Pin number 1 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
