2202-1802 | WAGO

4-wire feed-through terminal, spring-clamp connection, 0.25-4.0 mm², 1 pole, 16 A, 6 kV, orange, 2202-1802

Order No.: 44P8808
EAN: 4055143974851
MPN:
2202-1802
Series: TOPJOB S

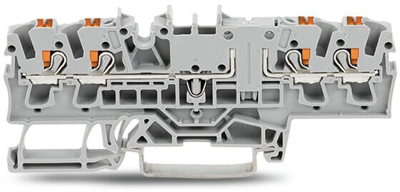

2202-1802 WAGO Series Terminals Image 1

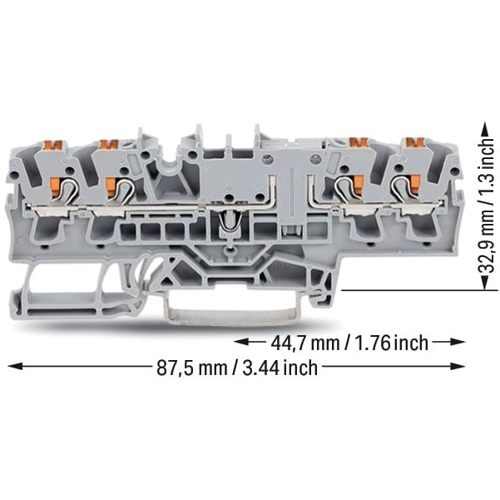

2202-1802 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.8076 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.81 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.8076 €

Terminal block, 2202-1802, WAGO

4-conductor through terminal block, with push-button, 2.5 mm², test option, same profile as 4-conductor disconnect terminal block, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2,50 mm², orange.

Technical specifications
Anschluss Federklemmanschluss
Anzahl der Klemmstellen 4
Ausführung 4-Leiter-Durchgangsklemme
AWG-Leiterquerschnitt AWG 22 bis 12
Bemessungsspannung 400 V
Bemessungsstoßspannung 6 kV
Breite 5.2 mm
Farbe orange
Höhe 87.5 mm
Länge 39.5 mm
Leiterquerschnitt 0,25-4,0 mm²
Nennstrom 16 A
Polzahl 1-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei No
