2202-1881 | WAGO

4-wire fuse terminal, spring-clamp connection, 0.25-4.0 mm², 2 pole, 10 A, 6 kV, gray, 2202-1881

Order No.: 44P8820
EAN: 4055143902830
MPN:
2202-1881
Series: 2202
WAGO

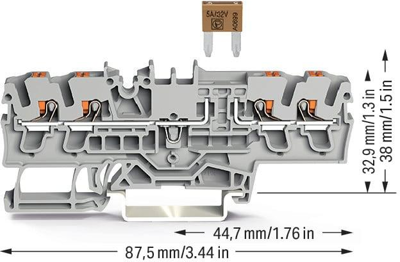

2202-1881 WAGO Series Terminals Image 1

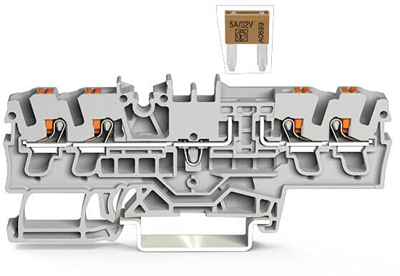

2202-1881 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Available in 5 Days: 609 pcs.
Leadtime: 1 Week **
Total Price:
4.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
4.6648 €

Terminal block, 2202-1881, WAGO

4-conductor fuse terminal block, for mini-automotive blade-style fuses, per DIN 7258-3f, ISO 8820-3, test option, with push-button, without blown fuse indication, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 4
Version 4-wire fuse terminal
AWG cross-section AWG 22 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV
Width 5.2 mm
Colour gray
Height 87.5 mm
Cable cross-section 0.25-4.0 mm²
Rated current 10 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
